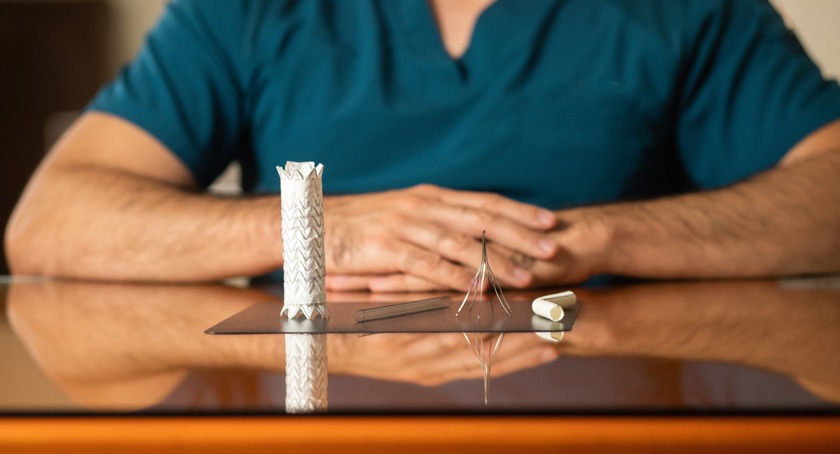

Medical device prototyping is frequently associated with early mechanical models or housing components. For many devices, particularly those designed for minimally invasive procedures, the most critical prototype is often the tubing inside the device.
Catheters, fluid delivery systems, and many diagnostic tools depend on precisely engineered tubing to function as intended. Before a device reaches regulatory testing or full production, engineers must confirm that tubing materials, geometry, and mechanical performance behave consistently under expected conditions.
Because of this, tubing development often becomes one of the most technically demanding stages in medical device prototyping.
Where Prototyping Fits in Medical Device Development
Medical device prototype development typically progresses through several stages as a concept moves toward commercialization.
Early prototypes allow engineering teams to evaluate device configuration and basic functionality. As development progresses, prototypes become more focused on material selection, dimensional precision, and manufacturability.
Eventually, prototypes must closely resemble the final device in both materials and production methods. This step is essential because regulatory requirements mandate that medical devices demonstrate performance under conditions that replicate real-world use. The U.S. Food and Drug Administration outlines these requirements through its design control framework known as Quality Management System Regulation (QMSR), which requires verification and validation of device performance during development.
For devices that rely on tubing components, this transition often requires evaluating the extrusion process early in development.
Rapid Prototyping and Its Role in Device Development
Rapid prototyping technologies such as additive manufacturing and CNC machining have significantly accelerated the early stages of device development. These tools allow engineering teams to quickly produce concept models and evaluate device functionality.
However, these methods have limitations when used for components that will ultimately be manufactured through extrusion.
Extruded tubing behaves differently from parts produced through additive or subtractive processes. Variables such as melt behavior, drawdown ratios, and cooling conditions influence the final dimensions and mechanical performance of thermoplastic tubing.
Industry standards organizations such as ASTM International emphasize that manufacturing processes can affect polymer performance, particularly in medical applications where dimensional precision and material consistency are critical.
For this reason, tubing prototypes often need to be produced using the same extrusion processes that will be used in final production.
Why Tubing Prototypes Matter in Catheter Development
Catheter systems depend on tubing structures that must perform multiple functions simultaneously. These components must balance flexibility, structural integrity, and dimensional accuracy while interacting with guidewires, medical fluids, and other device elements.
Several factors make tubing prototypes particularly important during development.
Wall thickness and flexibility. Small changes in wall thickness can significantly influence catheter flexibility and torque response.
Lumen geometry. Multi-lumen tubing must maintain consistent internal channels to support functions such as fluid delivery, pressure monitoring, or device deployment.
Material behavior. Polymers used in catheter construction exhibit unique mechanical characteristics that affect performance during device use.
Research published through the National Institutes of Health highlights that catheter shaft design—particularly material selection and structural configuration—plays a critical role in device performance and reliability.
Without accurate tubing prototypes, these factors can be difficult to evaluate during early development stages.
Material Selection During Prototype Development
Material choice is one of the most important decisions during medical device prototyping. Different thermoplastic polymers provide different combinations of strength, flexibility, and chemical resistance.
Common materials evaluated during tubing prototype development include:
Pebax® – Frequently used in catheter shafts due to its balance of flexibility and strength.
Nylon – Known for high mechanical strength and dimensional stability.
Polyurethane – Valued for flexibility and abrasion resistance.
Polyethylene – Often used in fluid management and disposable medical devices because of its chemical resistance and processing efficiency.
Material selection must also consider sterilization compatibility. Medical devices must withstand sterilization methods such as ethylene oxide, gamma radiation, or steam, each of which can affect polymer stability. Guidance on sterilization standards is maintained by the Association for the Advancement of Medical Instrumentation (AAMI).
Engineering Challenges in Medical Tubing Prototypes
Tubing introduces engineering challenges that are less common in other forms of medical device prototyping.
Dimensional tolerances are often extremely tight. Even minor variations in lumen diameter or wall thickness can affect fluid flow or device deployment.
Material handling also plays an important role. Many thermoplastics used in medical extrusion require precise control of moisture levels and processing temperatures to maintain consistent mechanical performance.
Multi-lumen tubing designs further increase complexity, as maintaining consistent lumen geometry across extended lengths requires precise tooling and extrusion control.
These challenges highlight the importance of considering manufacturing processes during the earliest stages of device design.
Transitioning from Prototype to Production
The ultimate purpose of prototype development is to ensure that a device can move efficiently into full-scale manufacturing.
When tubing prototypes are produced using the same materials and processes intended for production, engineers gain a clearer understanding of how the final device will behave.
This approach allows development teams to identify manufacturing constraints early, refine tubing geometry, and avoid costly design revisions during later stages of development.
Early alignment between design and manufacturing helps streamline the path from prototype testing to regulatory submission and commercial production.
Supporting Medical Device Prototyping Through Precision Extrusion
Medical Extrusion Technologies works with medical device manufacturers developing catheter systems and fluid management devices that rely on precision tubing components.
By collaborating during prototype development, engineers can evaluate tubing designs using materials and extrusion processes consistent with production manufacturing.
Capabilities include thin-wall thermoplastic tubing, multi-lumen extrusion profiles, and tight tolerance tubing designed for demanding medical device applications.
Early collaboration between device engineers and extrusion specialists can help improve manufacturability while supporting efficient development from prototype evaluation through commercial production.
